Repair Questions/Help Thread

Anonymous Tue 13 Jun 2023 17:14:25 No.4190679 View View Reply Original Report

Quoted By: >>4190689 >>4191073

Anything related to how to repair cameras, questions about malfunctions and so on
>Help needed with Canon FT
I got a Canon FT QL from a friend of mine. The camera seems to be in working conditions, everything is working, except for the lens
It's a Canon FD 50mm 1:1.8
The aperture ring is stuck at f16
When I remove the lens and manually fiddle with the metal 'sticks' on its back it works just fine: it stays open at f1.8, and closes up to f16, so there are no problems with it
But the aperture ring is not moving, it's stuck in position
How do I fix it? Tv

Anonymous

View Same Google ImgOps iqdb SauceNAO IMG_20230613_141518.jpg, 1MiB, 2136x2848

Anonymous Tue 13 Jun 2023 17:16:51 No.4190681 Report

Quoted By: >>4190689

Front view of the lens

Anonymous

Anonymous Tue 13 Jun 2023 17:22:35 No.4190683 Report

Quoted By: >>4190684 >>4190689 >>4194206

Rear view
Those 'metal sticks' (I don't know what to call them) are working
It's the aperture ring that's stuck

Anonymous

View Same Google ImgOps iqdb SauceNAO IMG_20230613_141951.jpg, 1MiB, 1861x2481

Anonymous Tue 13 Jun 2023 17:24:03 No.4190684 Report

Quoted By: >>4190689

>>4190683
Forgot the image

Anonymous

View Same Google ImgOps iqdb SauceNAO IMG_20230613_142632.jpg, 1MiB, 1564x1564

Anonymous Tue 13 Jun 2023 17:29:32 No.4190685 Report

Quoted By: >>4190689 >>4194206

From what I see the silver ring is slightly misalligned, which might be causing the aperture ring to be stuck
What do you guys think?
And how may I fix it?
Thanks in advance

Anonymous

Anonymous Tue 13 Jun 2023 17:33:33 No.4190687 Report

Quoted By: >>4191030

I have an old Zeiss Ikonta folder - it still works, i like the image output, but it seems to be skipping/overlapping some frames when I advance the film. Is it a matter of lubrication, or is it beyond hope at this point?

Anonymous

Anonymous Tue 13 Jun 2023 17:44:10 No.4190689 Report

Quoted By:

>>4190679
>>4190681
>>4190683
>>4190684
>>4190685
That's a breech lock Canon, they work on friction unlike bayonet ones. Not very familiar with them but maybe this knowledge can help you figure it out

Anonymous

Anonymous Wed 14 Jun 2023 12:44:04 No.4191030 Report

Quoted By: >>4191237

>>4190687
Get a backing paper, wind it around the spool like a normal film and run it through the camera with the back open to see if it presents any problem
Maybe it's slipping
But it's probably something simple

Anonymous

Anonymous Wed 14 Jun 2023 15:21:12 No.4191073 Report

Quoted By: >>4191113 >>4192391

>>4190679
I don't know the answer to your lens problem but just in case you or the previous owner didn't know this - that is an FL mount camera not FD.

The FD lens will attach and work, but it'll only do stop-down metering.

You should be able to replace that lens for $50 if you can't fix it.

Double check to make sure it isn't stuck on auto (green "A" or "O") aperture, which this camera can't use anyway. You have to press the little black button on the side of the lens to get it out of auto.

Anonymous

Anonymous Wed 14 Jun 2023 17:08:23 No.4191113 Report

Quoted By: >>4191128

>>4191073
aah nice, thanks
I found it weird that the lens was marked as FD and from what I gathered the camera had this FL mount, although it fit just ok
If it works with stop-down metering it's good enough for me, thanks for the info
There's no black button on the side of the lens, though. Do you know if there's something similar on this specific model, or does it work just by screwing/unscrewing the ring?
It's stuck, so I don't want to force it, but I'd like to better understand its mechanism

Anonymous

View Same Google ImgOps iqdb SauceNAO s-l1600.jpg, 196KiB, 1600x1066

Anonymous Wed 14 Jun 2023 17:22:15 No.4191128 Report

Quoted By: >>4191136 >>4191215

>>4191113
I don't have this specific lens (they redesigned the 50mm 1.8 several times during the lifetime of the FD mount), but does it have this?

Anonymous

Anonymous Wed 14 Jun 2023 17:27:09 No.4191136 Report

Quoted By: >>4191144 >>4191215

>>4191128
Oh nevermind, I just realized that's for proprietary Canon flash syncing.
I think this one just doesn't have that lock, so it *should* turn. I'd just get another one.

Anonymous

Anonymous Wed 14 Jun 2023 17:30:32 No.4191144 Report

Quoted By: >>4191148 >>4191215 >>4192391

>>4191136
and if you can swing spending $100 on it instead of $50, get the f/1.4 version.

Anonymous

View Same Google ImgOps iqdb SauceNAO Front-1.jpg, 222KiB, 951x856

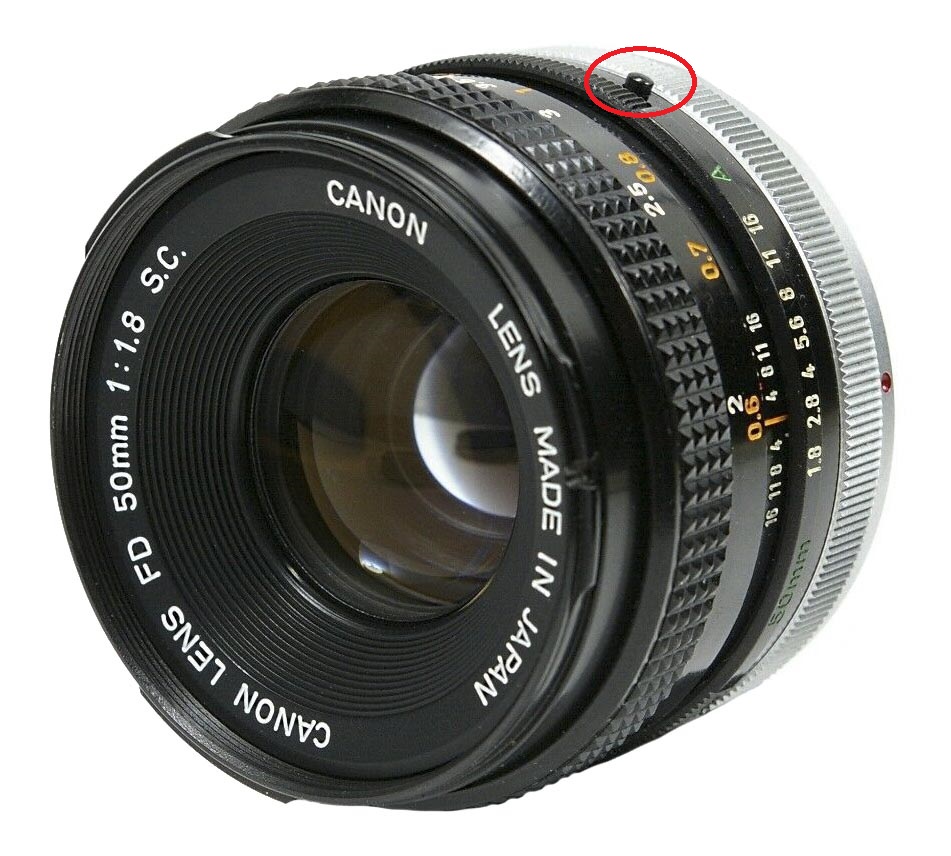

Anonymous Wed 14 Jun 2023 17:36:46 No.4191148 Report

Quoted By: >>4191215

>>4191144
on ones that have that lock, its back here

Anonymous

Anonymous Wed 14 Jun 2023 19:18:23 No.4191215 Report

Quoted By: >>4191235

>>4191148
This one looks a lot like my Pentax's 50mm prime lens, with the button and all
>>4191128
>>4191136
it does have that part but, as you said, it's for something else
I thought it was some tactile thing for better knowing where the focus ring is, since they're in the same place
>>4191144
I'm pretty low on budget, to be fair I don't even have a budget, since my friend just gave me a box full of old cameras and I'm sorting out the working ones
This Canon FT seems to be in pretty good shape, everything works except for the stuck ring
Also in my country this kind of stuff is way over what one would pay in the US, so buying the f1.4 is unfortunately not an option right now
Thanks for all the info!
I'll see if I take it to be checked by a repairman, but if I could do it myself it would be great so that I don't end up spending more than I could right now

Anonymous

Anonymous Wed 14 Jun 2023 19:54:27 No.4191235 Report

Quoted By: >>4191386

>>4191215
You can find instructions online for disassembling, cleaning, and re-assembling these lenses. Just be aware you might break it.

Anonymous

Anonymous Wed 14 Jun 2023 19:56:01 No.4191237 Report

Quoted By: >>4191386

>>4191030
>thanks for the idea. not sure where to find backing paper - could i just tape together old cut up developed film or something? just need something to run through without clogging

Anonymous

Anonymous Thu 15 Jun 2023 03:39:50 No.4191386 Report

Quoted By: >>4191407

>>4191235
yeah, as someone with zero experience repairing cameras, I think I'm not cut out for this job
>>4191237
If you don't keep your backing papers, you can ask your local film/camera shop
I always keep them around for tests and stuff like that
They'll surely give you them for free, and also ask for some spools

Anonymous

Anonymous Thu 15 Jun 2023 04:35:04 No.4191407 Report

Quoted By:

>>4191386
much appreciated

Anonymous

View Same Google ImgOps iqdb SauceNAO Fyn_TbAXgAUe11-.jpg, 244KiB, 1536x2048

Anonymous Thu 15 Jun 2023 20:34:07 No.4191686 Report

Quoted By: >>4191687 >>4191750

so the other day i dropped my fuji clear shot M down the stairs by accident, it operates flawlessly but i'm pretty concerned about light leaks considering i couldn't quite get the body fully together (more like i was afraid to pry it apart)
is there a risk for light leaks here? and if so, how bad?

Anonymous

View Same Google ImgOps iqdb SauceNAO Fyn_T0qWcAcZOX1.jpg, 218KiB, 1536x2048

Anonymous Thu 15 Jun 2023 20:35:10 No.4191687 Report

Quoted By: >>4191688 >>4191796 >>4191831

>>4191686

Anonymous

View Same Google ImgOps iqdb SauceNAO Fyn_UMbXgAAqPkc.jpg, 198KiB, 1536x2048

Anonymous Thu 15 Jun 2023 20:36:25 No.4191688 Report

Quoted By: >>4191831 >>4191834

>>4191687

Anonymous

Anonymous Thu 15 Jun 2023 22:43:44 No.4191750 Report

Quoted By:

>>4191686
Just embrace the light leaks

Anonymous

Anonymous Fri 16 Jun 2023 01:45:01 No.4191796 Report

Quoted By: >>4191799

>>4191687
That looks bad
As it seems, there's a roll in it already, so you'll know if there are leaks when you develop it
You can stick duct tape to the gaps for now, but... expect leaks
It looks like the moving part is tilted, maybe if you post pictures of that side someone might know how to fix it

Anonymous

Anonymous Fri 16 Jun 2023 01:50:21 No.4191799 Report

Quoted By: >>4191800 >>4191831 >>4191834

>>4191796
fuggg
i just hope this roll won't be too ruined
any idea of the gravity of leak this would cause?

Anonymous

Anonymous Fri 16 Jun 2023 01:51:25 No.4191800 Report

Quoted By: >>4191831 >>4191834

>>4191799
i have since made an effort to tape up the gaps to the best of my ability BTW

Anonymous

Anonymous Fri 16 Jun 2023 03:57:06 No.4191831 Report

Quoted By: >>4191835

>>4191799
>>4191800
We can't tell until it gets developed
From the pictures I'm more concerned about that side gap here >>4191687 , but I don't know, maybe it leaks, maybe it doesn't because it's illuminating just a bit on the side where the cannister would be and there's possibly no light getting to the actual film, maybe there'll be a bit of fogging
Can't tell until you see the negatives
But I believe duct tape should do the trick in the mean time, and layering the tape might be a good option until you can get the cam checked
>>4191688 you're on the 36th exposure, right?
Probably the pictures that were already taken prior to the accident are ok since they the film is all rolled up and light shouldn't get past a couple of shots if there are minor breaches
I would recommend rewinding the film in complete darkness, though, just to be sure, because if there's a light leak and you rewind it, you'll be exposing all of the shots to light

Anonymous

Anonymous Fri 16 Jun 2023 03:58:32 No.4191834 Report

Quoted By:

Also:
>>4191688
>>4191799
>>4191800
Check'd

Anonymous

Anonymous Fri 16 Jun 2023 03:59:09 No.4191835 Report

Quoted By: >>4191836 >>4191866

>>4191831
that's between exposure 3 and 6, sadly it happened very early into my roll
i'll keep applying layers there but basically i was too afraid to try and pull the body back apart to tuck that part in

Anonymous

Anonymous Fri 16 Jun 2023 04:00:17 No.4191836 Report

Quoted By: >>4191952

>>4191835
in blind confidence i had hoped it'd only technically reach into a bit that is closed off from the film chamber, but again we'll just have to see since i don't exactly know this cam's anatomy off the back of my hand
thanks for the help anyway! i appreciate the comments even with my ridiculous situation lol...

Anonymous

Anonymous Fri 16 Jun 2023 05:37:43 No.4191866 Report

Quoted By: >>4191952

>>4191835
>that's between exposure 3 and 6
pull the roll, install a cheap, 24 exp roll of Kentmere or Foma and test, develop that to check for light leaks

Anonymous

Anonymous Fri 16 Jun 2023 17:29:40 No.4191952 Report

Quoted By:

>>4191836
>>4191866
I would suggest something less expensive (even though Kentmere and Foma are not prohibitively costly where I'm from, they're far for expendable) either)
Take a couple more shots in bright light, in the sun etc. so that you can test whether there are any light leaks from the cassette to the winding spool
Then do the following:
>take a pair of scissors, the camera and a black canister to a completely dark place
>open up the camera, pull out a bit more of film if necessary, and then cut it out, leaving a bit of film hanging out
>place the exposed film in the black canister
>tape the canister so that a distracted person won't open it by accident
>place stickers written "BARE FILM / DO NOT EXPOSE TO LIGHT"
Take the roll to your local developer and explain to them that the canister has bare film in it, and that they should open in the dark as they would with a cassete
This way you can keep your ~30 film roll to use in another good camera or in this same camera after getting the results and seeing if there are light leaks
In the mean time you can also see what happened to the camera since it will be empty and send it to repair or even repair it yourself (you may post pictures of the camera in this thread, maybe someone might know how to fix it)

Anonymous

Anonymous Sun 18 Jun 2023 05:18:17 No.4192391 Report

Quoted By: >>4194320

>>4191073
>>4191144
Well, fuck it
I just bought it
(Actually a relative wanted me to choose a gift and I grabbed the chance lol)
Got the 3rd version, the one with "Canon Lens FL 50mm f1:1.4 II" written on the outer ring
The first version is radioactive, so it could be/get brown, and the other two are basically the same, but the third version is the one that I found in better shape for sale
I'll only get my hands on it in July, can't wait to get it!
Thanks for the tip
I normally use my Pentax K1000 and I thought I'd never find a cooler 35mm SLR, but the Canon FT QL has a timer, a mirror lifting mechanism, a battery tester, a quick-loading mechanism, and a variety of compatible lenses that are also cheap and easier to find

Anonymous

Anonymous Thu 22 Jun 2023 19:20:57 No.4194206 Report

Quoted By:

>>4190683
>>4190685
Update:
I brought the lens to a repair shop and it was so simple the old man didn't even charge me
He fixed it in 15min max
Not only that, but I went to get my developed roll at the other store nearby and told them about the camera and that it was then fixed
I'm a regular client, and they're always very receptive
I asked if they had any cheap films for sale for me to test the camera, see if it's working alright
They had a respooled Kodak 500T expired for god knows how since when, and they wanted to test it to see what's the appropriate ISO
So they gave me a roll and asked me to shoot metering for different ISOs and keep a record of the camera configurations
They'll also develop it for free
>TL;DR
>got my lens fixed for free
>also got a roll for free with (including development costs) for testings
I also bought the FL 50mm f1.4 that'll arrive probably in the next week or two
>life's good

Anonymous

Anonymous Fri 23 Jun 2023 01:31:44 No.4194320 Report

Quoted By:

>>4192391
Good luck with your FT.

Those FL 50mm f/1.4 and f/1.2 were aimed at owners of the Pellix. The reason for this was the Pellix's half-silvered mirror diverted half of the light up to the viewfinder even when taking a picture.

I grew up in a household where a Pellix was our family SLR. It was rarely used, as my parents actually preferred tiny 110 cameras and instants. I think when I used it for a high school art project may have been the first time it got used after I was born, actually. I still have it but I don't use it either - I got a FTb!

Sugar !egyYvoBZV2

View Same Google ImgOps iqdb SauceNAO 347638494_1999445183729484_53401 (...).jpg, 527KiB, 2048x1542

Sugar !egyYvoBZV2 Fri 23 Jun 2023 02:38:20 No.4194338 Report

Quoted By: >>4194793

This is a Yashica Lynx 14e I did a CLA on. Had a very dirty VF and RF. The shutter sounded good and was clean so nothing required there but the body had seen better days so I serviced it. I greased the wind knob and advance lever. The RF prisms got the cotton swab treatment with some industrial-grade glass cleaner and I adjusted the shutter mechanism to fire earlier on the down stroke of the shutter button, if you have a Lynx 14 you know what Im talking about.

I also adjusted the vertical and horizontal RF alignment and cleaned the glass plate on the top. It's like new and the VF is so much more contrasty.

Anonymous

Anonymous Sat 24 Jun 2023 03:00:04 No.4194793 Report

Quoted By: >>4194940

>>4194338
can you do my Olympus 35RC?

Sugar !egyYvoBZV2

Sugar !egyYvoBZV2 Sat 24 Jun 2023 15:16:38 No.4194940 Report

Quoted By:

>>4194793

what does it need?

Anonymous

View Same Google ImgOps iqdb SauceNAO 354453378_1907209093010582_95355 (...).jpg, 72KiB, 1020x768

Anonymous Sun 25 Jun 2023 11:39:49 No.4195233 Report

Quoted By: >>4195245 >>4195273

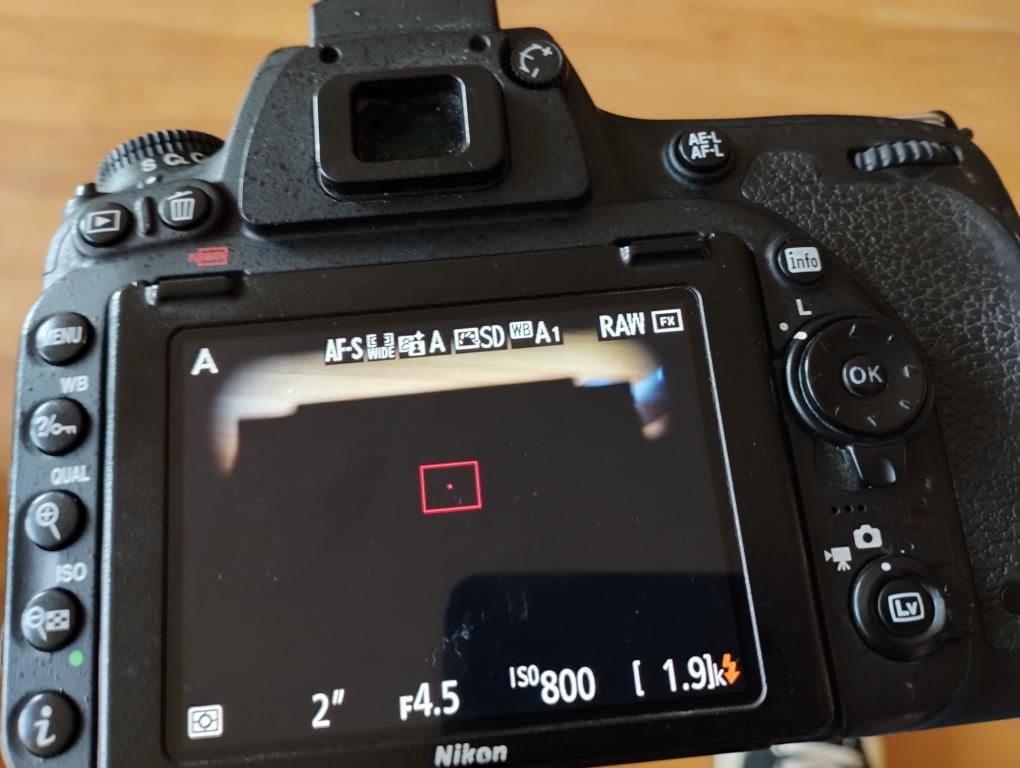

Anyone know what the issue might be? Looks fine through the viewfinder, but it looks like the mirror is blocking the sensor? idk

Anonymous

Anonymous Sun 25 Jun 2023 12:26:05 No.4195242 Report

Quoted By: >>4195267 >>4195273

My EOS 350D gives error 99 when I try to shoot with flash, wat do?

Anonymous

Anonymous Sun 25 Jun 2023 12:30:24 No.4195245 Report

Quoted By:

>>4195233
Have you tried taking off the lens and inspecting the mirror?

cANON

cANON Sun 25 Jun 2023 14:00:39 No.4195267 Report

Quoted By:

>>4195242
Use an external flash.

Sugar !egyYvoBZV2

Sugar !egyYvoBZV2 Sun 25 Jun 2023 14:24:02 No.4195273 Report

Quoted By: >>4195866

>>4195242

Use external flash, much better. And on something like an old 350D, you can use the film era flashes too. I don't think I've ever used the integrated flash on any DSLR/SLR and I think the first 36x24 one I bought that had one was my D800. I recommend the 430EX that was what I used when I had a 400D

>>4195233

If I remember, the mirror on that model (and many Nikon and most DSLRs) is a two piece, there's the silvered part for the viewfinder and a second part under it for the light meter. I'm betting there's an issue there.

Anonymous

Anonymous Mon 26 Jun 2023 18:52:43 No.4195704 Report

Quoted By: >>4195852

Anyone has any experience with the Minox 35 (whatever model they are all similar enough)? I have a funny issue where the automatic exposure is working (is selecting okay enough times) but the needle in the viewfinder just refuses to move. It does work with the battery test button. I see that the meter itself is working otherwise the camera wouldnt be able to select times at all. But for some reason I guess the connection between the meter and the needle has an issue ? maybe someone has an idea

Anonymous

Anonymous Tue 27 Jun 2023 02:30:01 No.4195852 Report

Quoted By: >>4195921

>>4195704
You use a stack of 4 44lr batteries taped together? If i remember correctly the original battery is out of production because it was some sort of mercury type.

cANON !!5Dz+C7v45HK

cANON !!5Dz+C7v45HK Tue 27 Jun 2023 03:13:57 No.4195866 Report

Quoted By:

>>4195273
>And on something like an old 350D, you can use the film era flashes too
on any Canon you can as long as they are EX series flashes, EZ ones are complicated tho

Anonymous

Anonymous Tue 27 Jun 2023 04:54:03 No.4195921 Report

Quoted By:

>>4195852
I use a new same form factor Alkaline. yes the mercury 5.4V was outlawed pretty much everywhere, which is super sad, since for cameras they provided a much more stable voltage. Tried the stack as well, I suspect that there is some issue in the circuitry because my batteries drop in voltage quickly. The service manual mentioned on some older models you need to replace a z-diode to use batteries with more than 5.4 volts. I hope I don't have to do that. Funny thing though the needle was working well at some point yesterday.

Capcode	All Only User Posts Only Verified Posts Only Moderator Posts Only Manager Posts Only Admin Posts Only Developer Posts Only Founder Posts
Show Posts	All Only With Images Only Without Images Only Spoiler Images Only Non-Spoiler Images
Deleted Posts	All Only Deleted Posts Only Non-Deleted Posts
Ghost Posts	All Only Ghost Posts Only Non-Ghost Posts
Post Type	All Only Sticky Threads Only Opening Posts Only Reply Posts
Results	All Grouped By Threads
Order	Latest Posts First Oldest Posts First

On these archives

Your latest searches

Repair Questions/Help Thread
